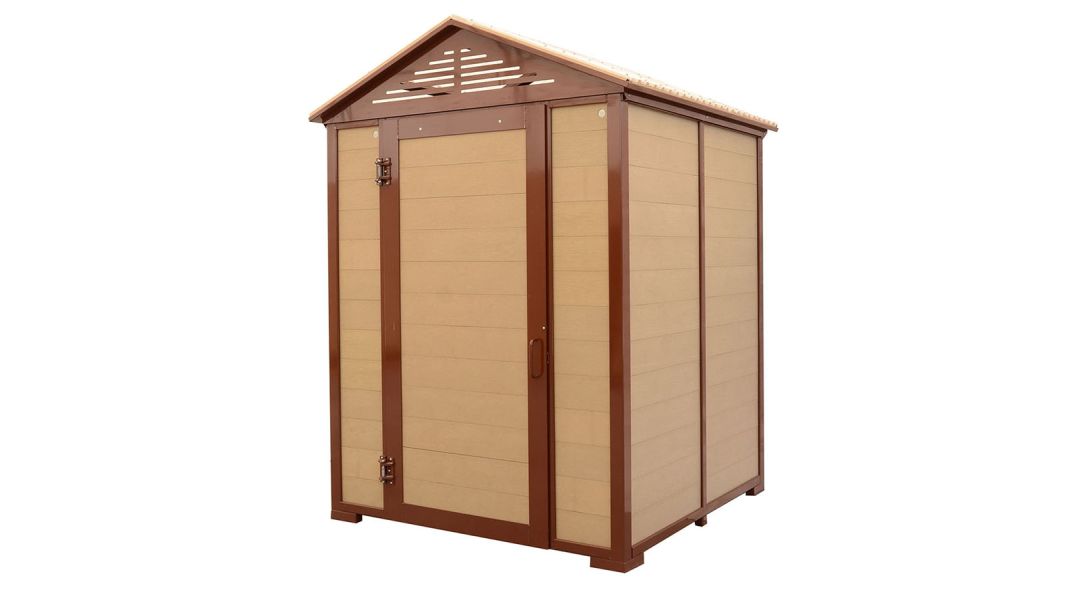

John Jumbo Outhouse Building

John Jumbo Outhouse Building

65

Recycled Content By Weight

  • Model Number:
    PTR-6J (Jumbo)

Designer Notes

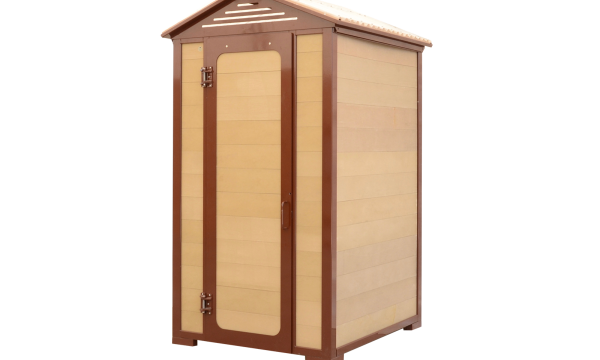

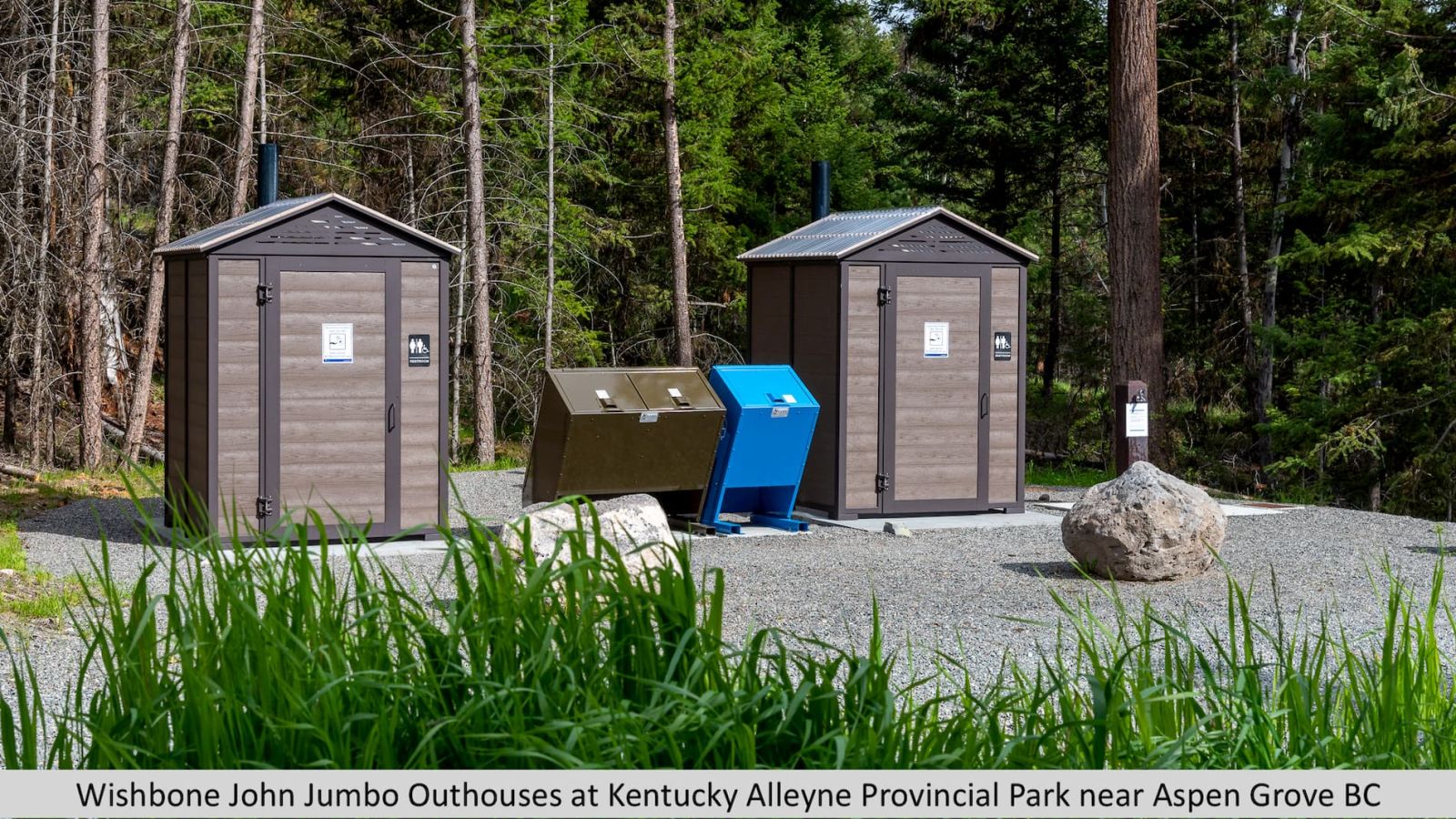

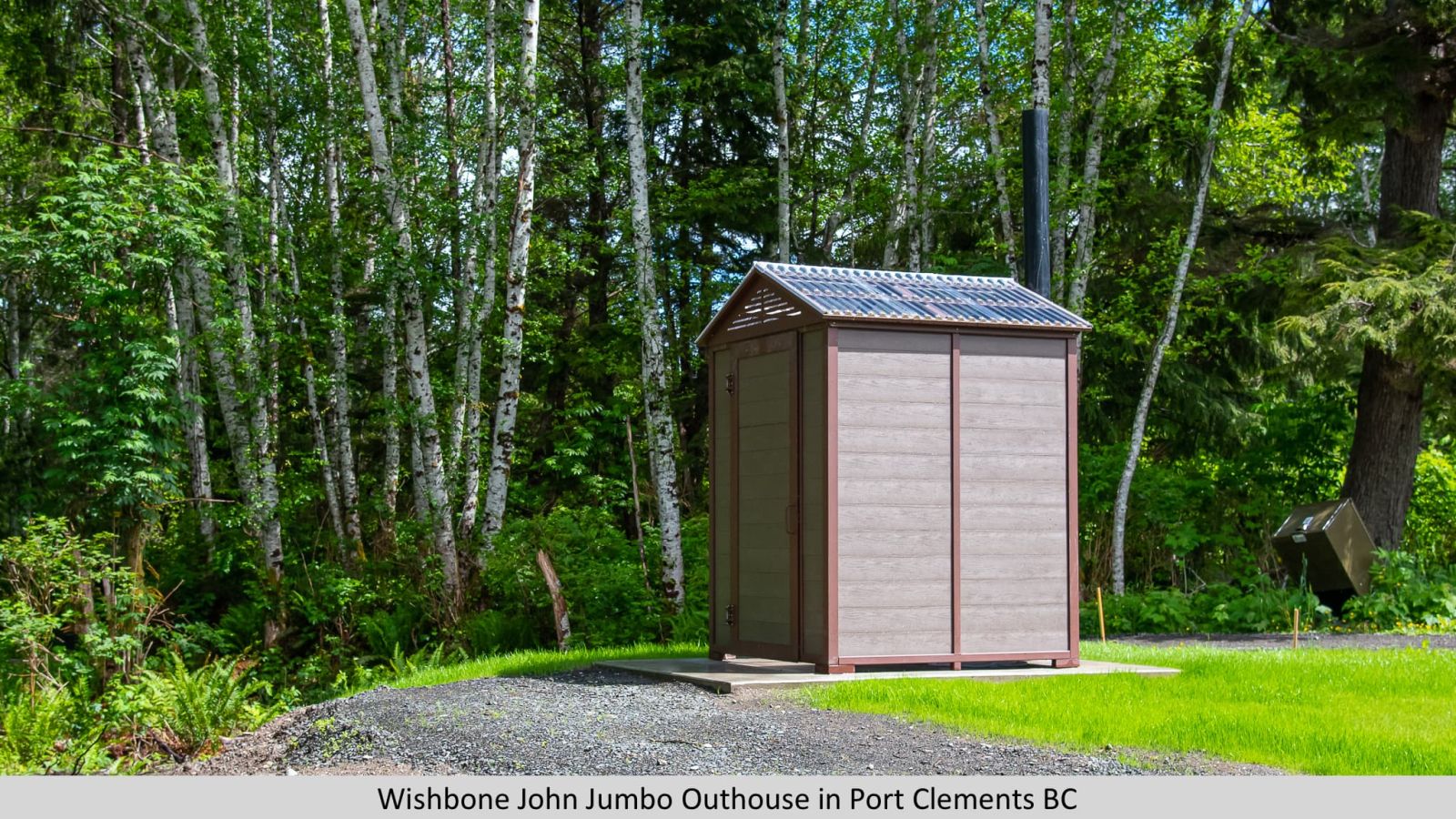

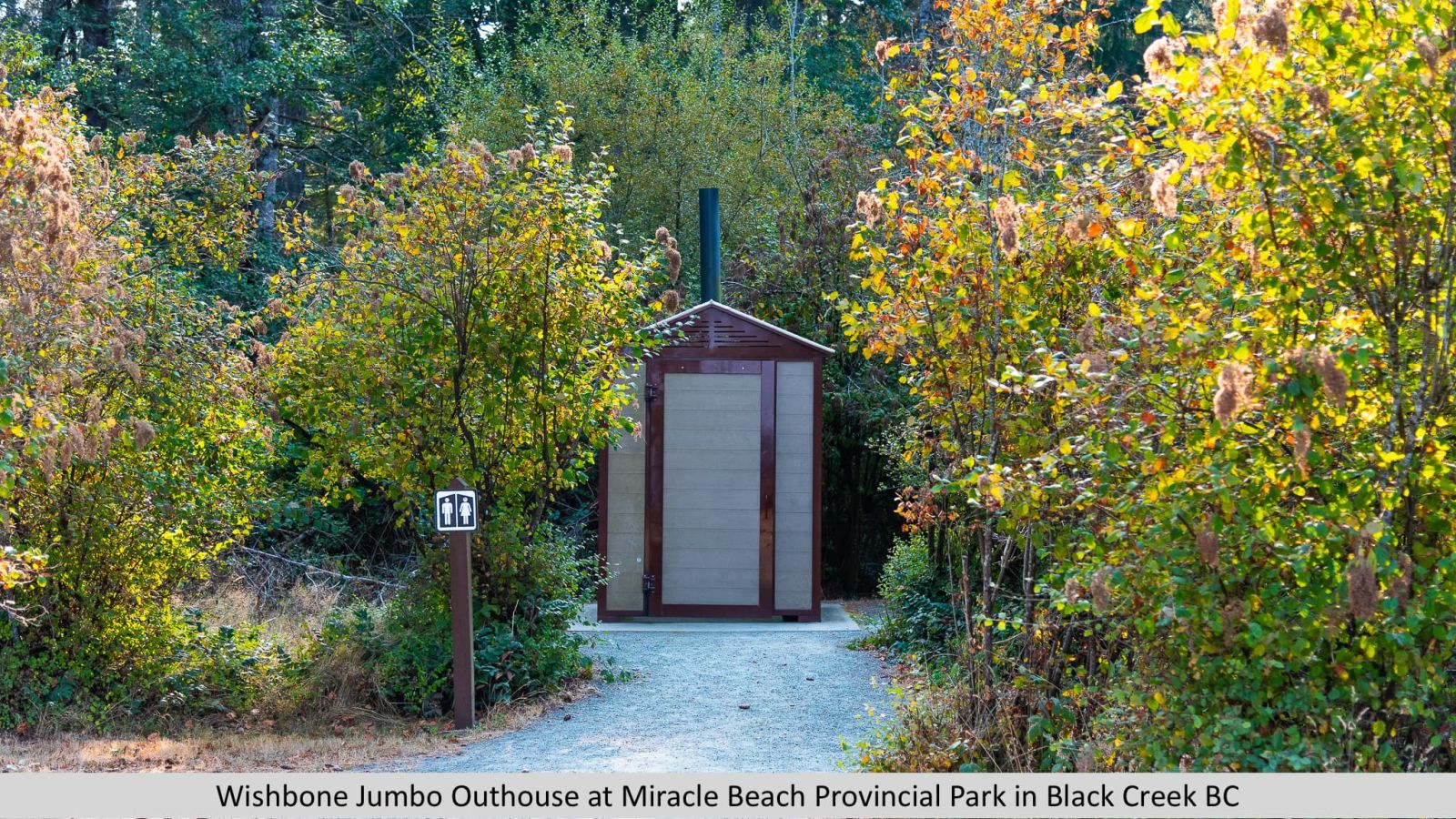

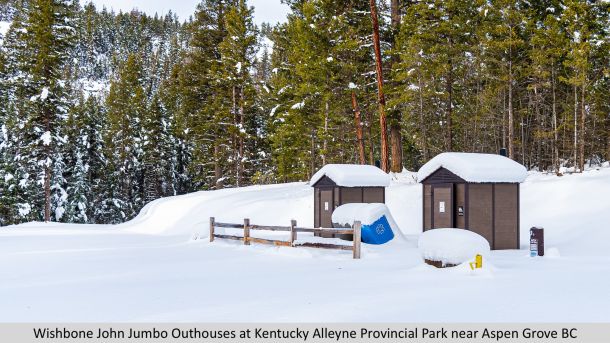

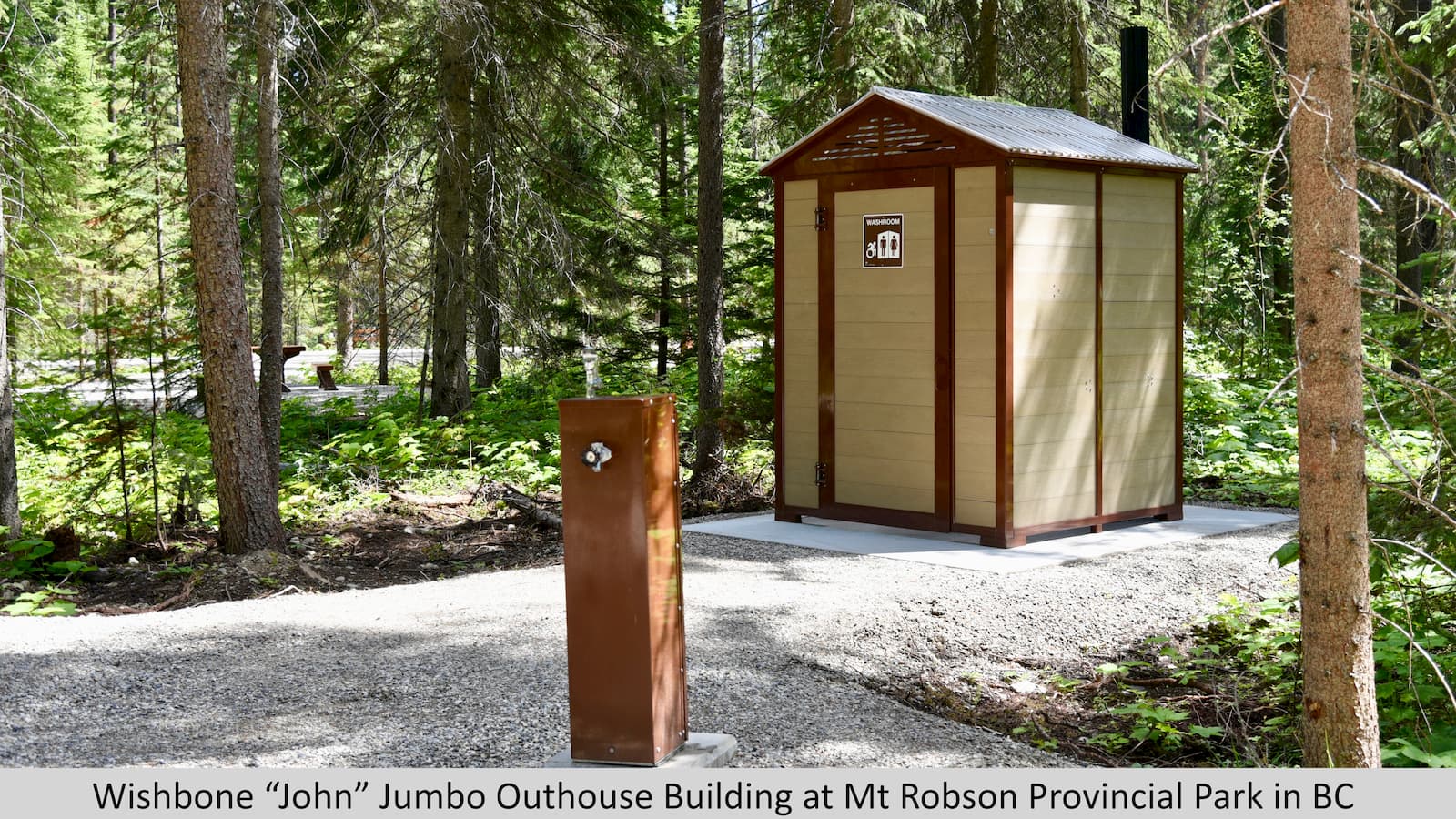

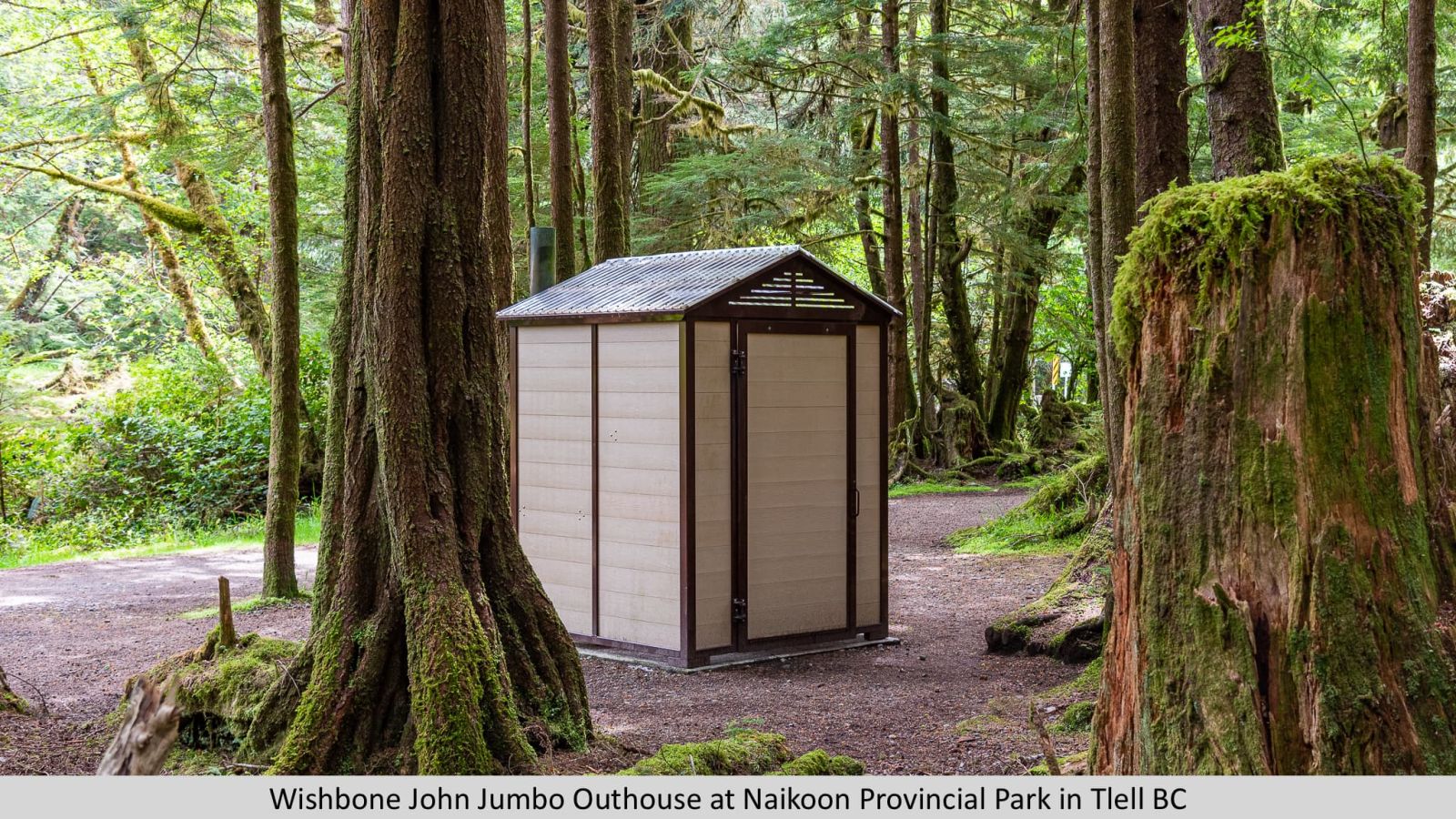

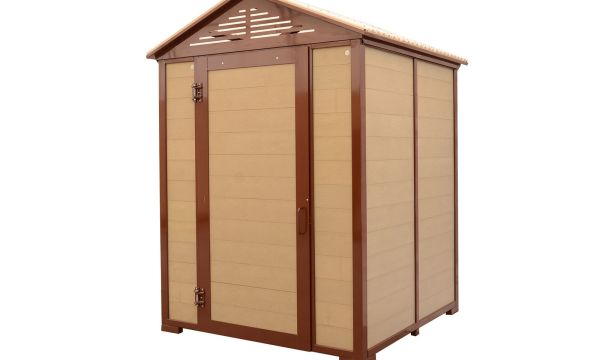

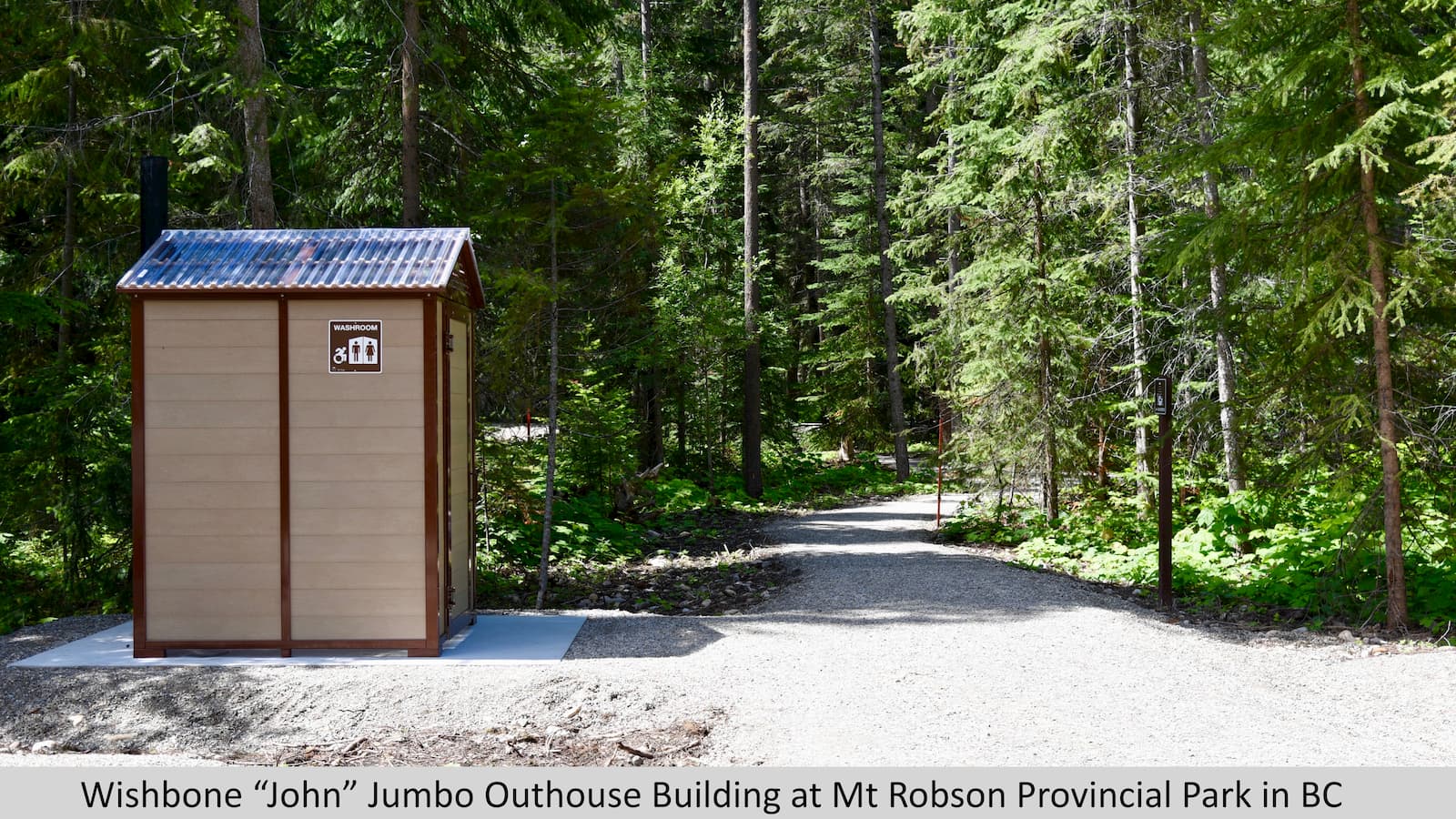

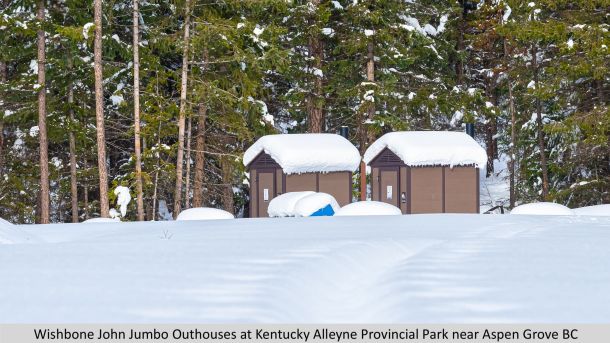

The John Jumbo Outhouse was designed at the request of some parks departments looking for an alternative to traditional wood buildings. The “Jumbo” Version, as the name implies, is a larger version of the regular version. In Canada it meets the basic requirements for wheelchair accessibility; though it does not meet ADA requirements in the US. See our Wheelchair Accessible version. The John addresses many of the issues typically associated with outdoor latrine buildings in semi-remote locations-transportation and handling, assembly, and the use of materials that require minimal if no maintenance over several years in a wide range of diverse environments. The John meets and exceeds these expectations while providing a very comfortable and memorable user experience. Strategically designed as a modular system, the individual components can be easily carried into semi-remote locations and be put together with minimal tools at a fraction of the traditional wood and concrete alternatives. The building is made from sturdy lightweight powder coated aluminum components, making it resistant to corrosion. The tongue-in-groove recycled plastic lumber slats will not rot or absorb moisture and can be sprayed with bleach or disinfectant without damage. After cleaning, excess water simply drains out the sides from the raised walls. They fit seamlessly into channels with only a few hidden fasteners, also making the unit theft and tamper proof. Lack of lighting normally associated with these types of structures has also been addressed with a translucent one-piece roof. It provides plenty of light but it does not compromise its strength and acts as an effective barrier against sun, wind and rain. The one-piece roof structure caps the entire unit providing ample protection from the elements and locks the whole structure together making it extremely solid. With most of the products we develop, the naming of it usually has a meaning. The name John, although seemingly quite applicable for the application, is actually named after the CEO and President of Wishbone. It is the only product, of the dozens that we have, where his name actually worked.

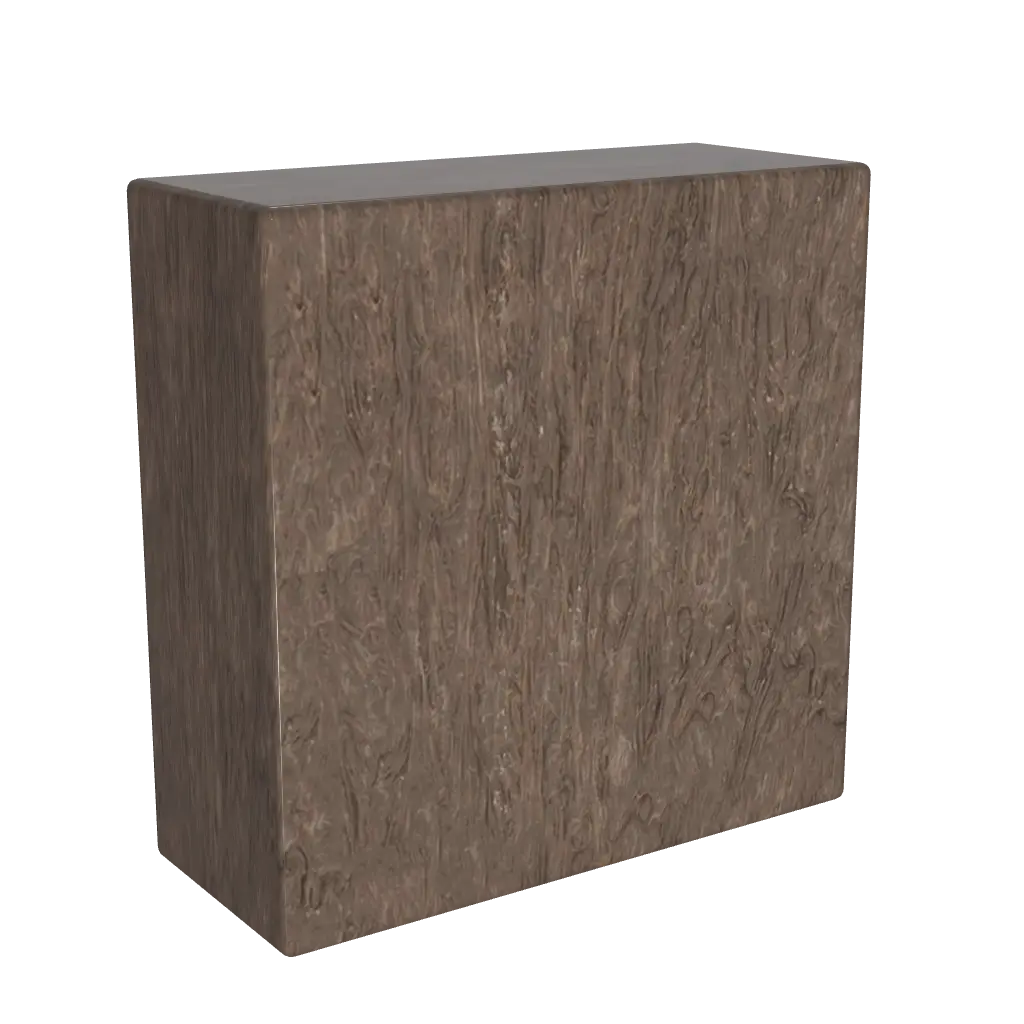

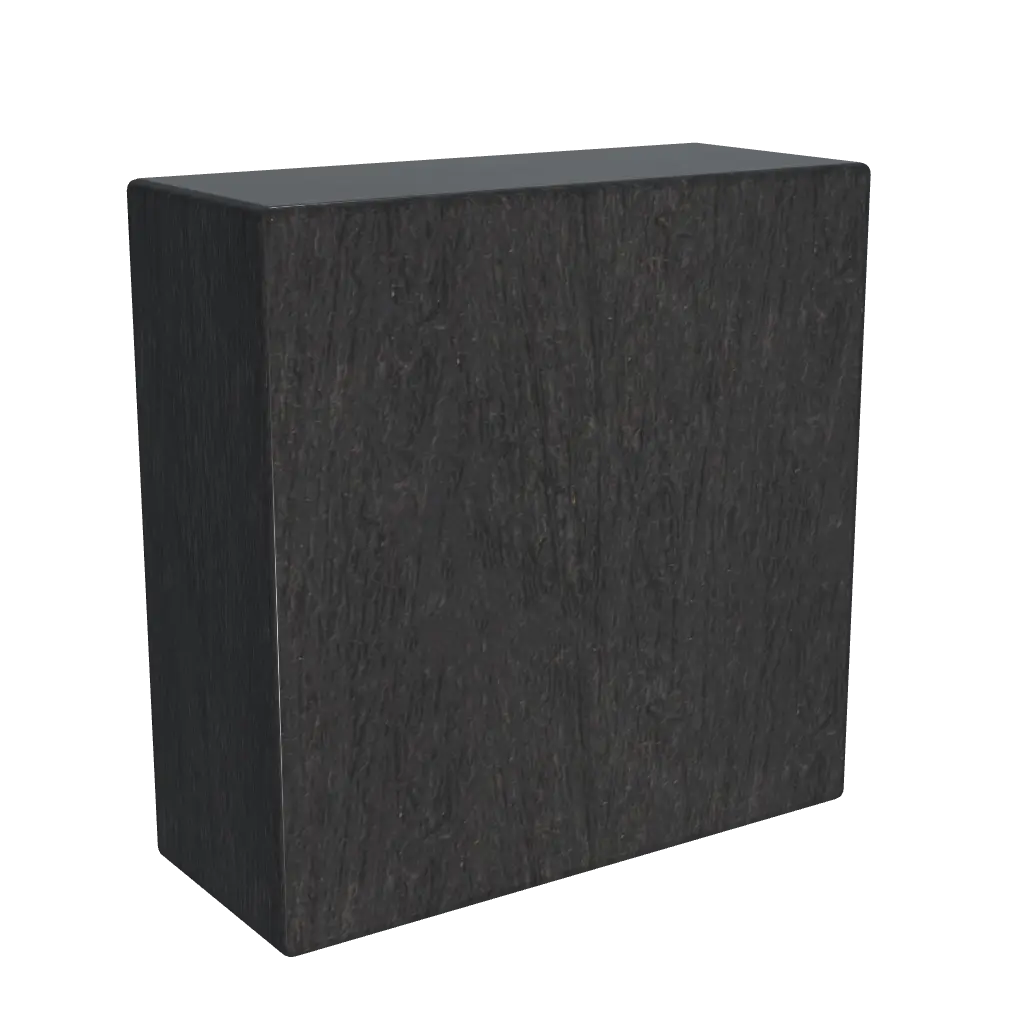

100% Recycled Plastic Lumber Colours *

Wishbone recycled plastic boards are non-toxic, ultra-durable and low maintenance.  They are easy to clean and can be renewed from UV Damage.  They are an excellent material for the demands of outdoor commercial furniture.

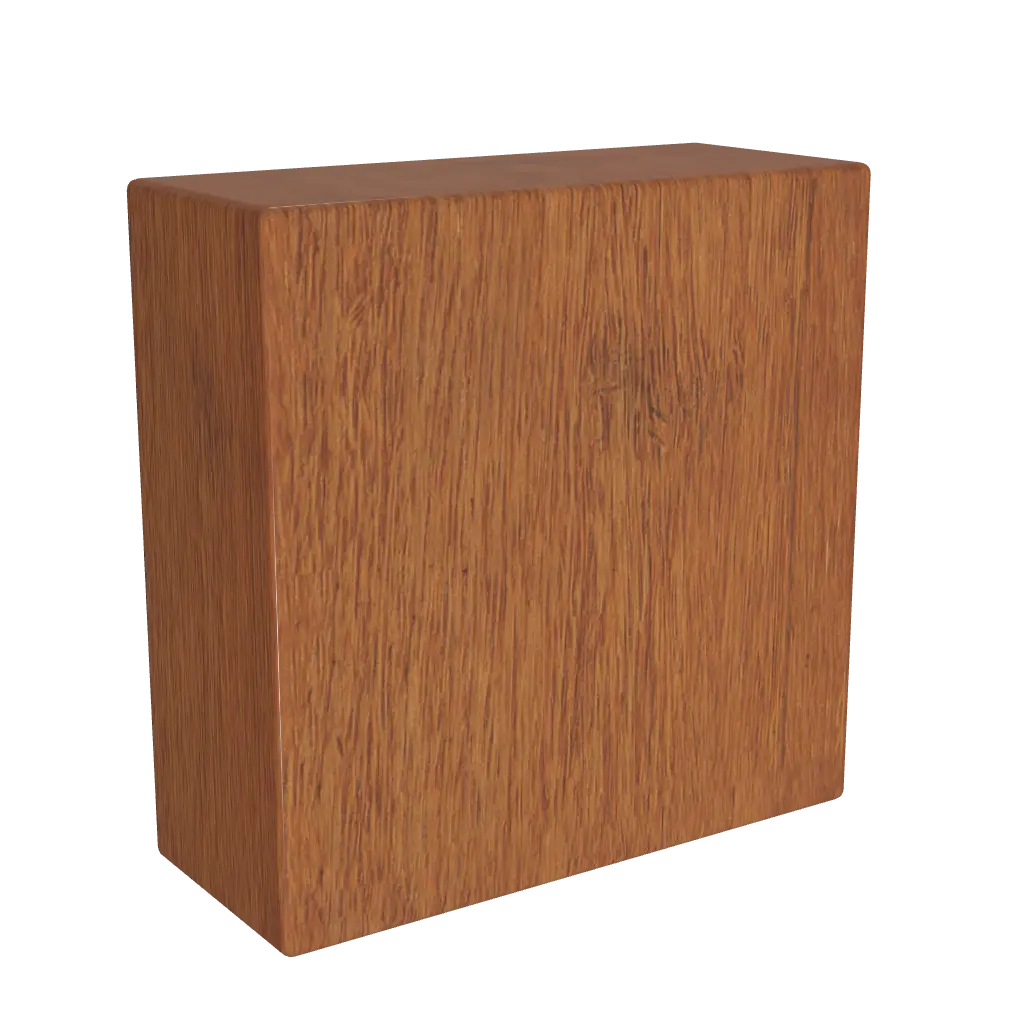

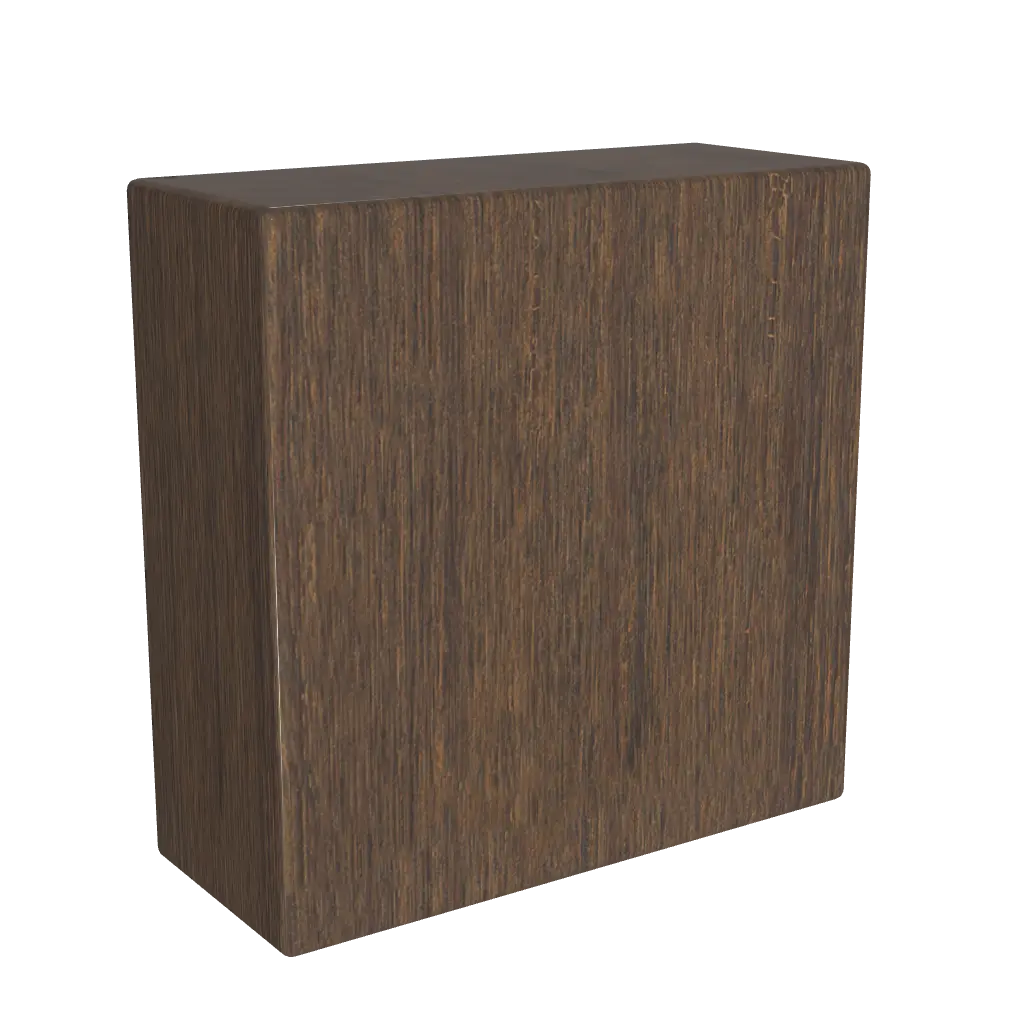

Natural Wood Alternatives *

Wishbone chooses the highest quality wood for outdoor applications. Unfortunately, the profiles available are limited and don’t work on all our products. Please contact our office to find out if the specific product you’re looking at can work with one of these options.

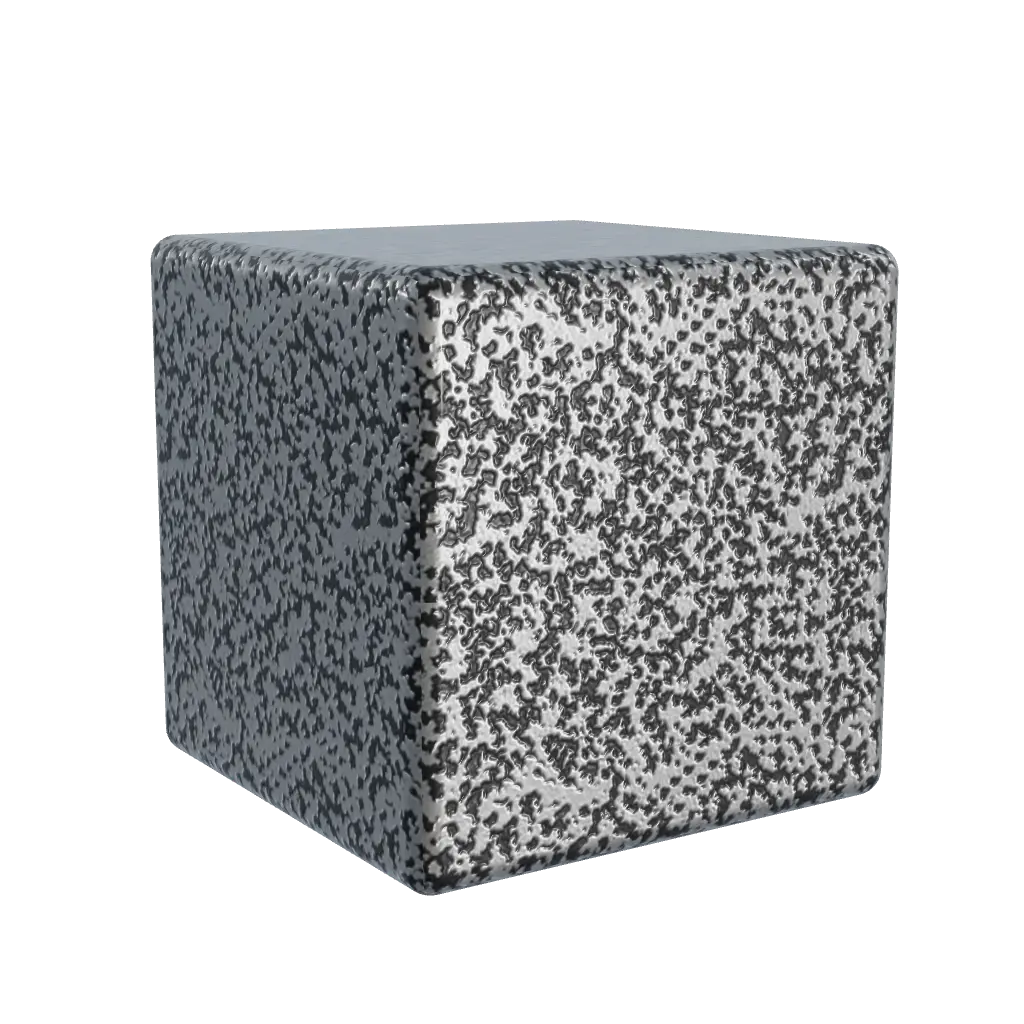

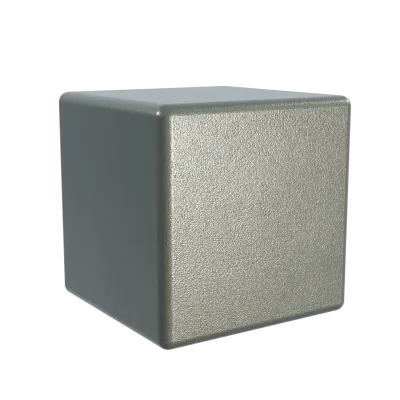

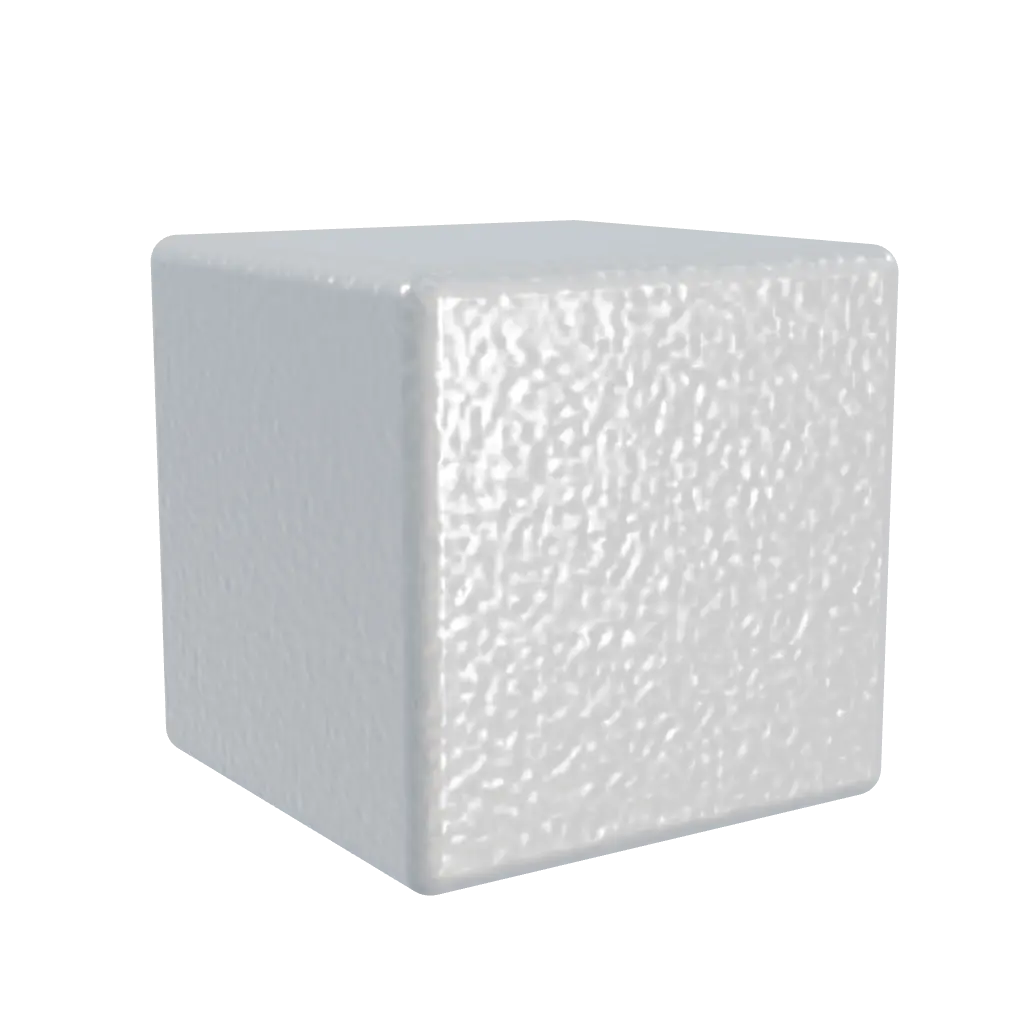

Super Durable Standard Powder Coat Colours *

*Due to variations in the types of screen resolutions available, colors represented here may vary slightly from the actual colors. Please contact Wishbone if you would like to have actual samples.

Material Specifications

  • 100% Recycled Plastic Slats
  • Western Red Cedar
  • Accoya Modified Pine

  • Hardened Bamboo

Customized Solutions

  • Custom Powder Coating
    (Setup Charges May Apply)
  • Toilet, urinal, toilet paper dispenser, sanitizer dispenser and vent stack are not included. They can be provided if requested.
  • All Aluminum Floor. (ALF-J)
  • Waterless Toilet System by Toilet Tech. Find out more here at https://www.ToiletTech.com
  • INST- 3.75 Stainless Steel Concrete Wedge Anchor Bolt Down Kit

Product Dimensions

Height: 96 inches / 244 cm
Depth: 68 inches / 173 cm
Width: 68 inches / 173 cm
Weight: 1500 lbs / 680.5 kg

Recycled Content

  • Recycled Content By Weight: 65%
  • 100% Recyclable
