Skyline Wall Bench
Skyline Wall Bench
-
Model Number:11”H | SLWB-11S Seat Support | SLWB-11E Seat End | 2 x 6 Re-plast Planks
Designer Notes

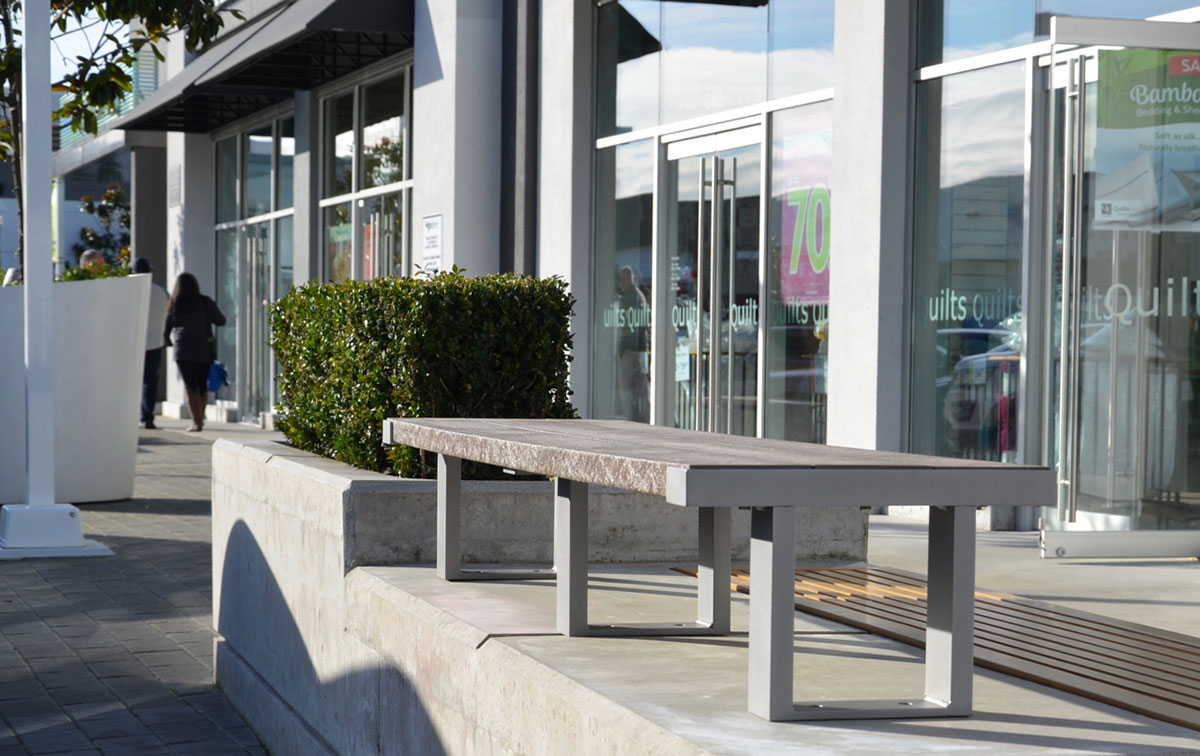

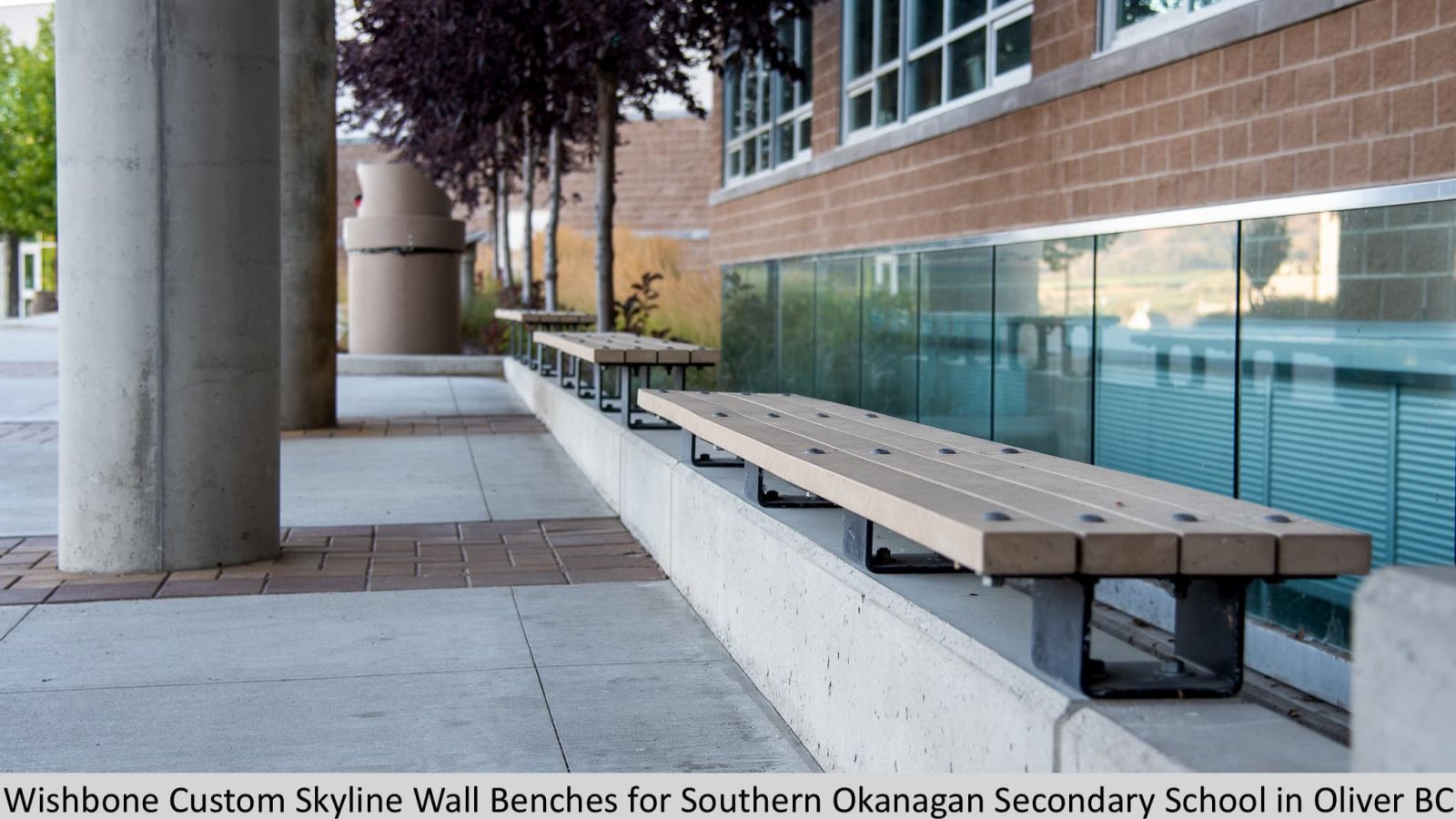

The Skyline series emphasizes the simplicity of many modern architectural styles, and the top wall-mounted bench is no different. Elegant in its design and simple in its style, this bench system is customizable to any top wall-mounted applications. Most commonly installed on top of a concrete wall feature or plinth, this type of bench can be incorporated alongside buildings and architectural features. Each bench requires two ends (BVWB-11E). The number of supports (BVWB-11S) required is determined by the total length and dividing it up to a maximum span distances of 20”. For example, a 72” bench would have 3 supports 18“ apart from each other and a 60” bench would have 2 supports 20” apart from each other. The lumber comes in 3 lengths: 6ft, 10ft and 12ft. Seats are three boards deep, giving a comfortable 17” seating surface.
100% Recycled Plastic Lumber Colours *
Wishbone recycled plastic boards are non-toxic, ultra-durable and low maintenance. They are easy to clean and can be renewed from UV Damage. They are an excellent material for the demands of outdoor commercial furniture.
Unstained Natural Wood Alternatives *
For applications where wood is preferred, Wishbone has several options. Stains specified by the cusomer can optionally be applied by Wishbone during manufacture.
Super Durable Standard Powder Coat Colours *
Textured Powders
These powders have a fine or coarse furface texture that helps to minimize blemishes and minor scratches
Low Lustre Powders
These powders resist fingerprints on a surface that is smooth and easy to clean
Gloss Powders
These powders are bold, bright and shiny
Material Specifications
- Marine Grade Aluminum Frame
- Stainless Steel Hardware
- 100% Recycled Plastic Slats
- Western Red Cedar
-
Accoya Modified Pine
Customized Solutions
-
Custom Powder Coating (Setup Charges May Apply)
-
2 x 4 Recycled Plastic Planks. (Must specify)
-
Bolt on Arm Rests (SLWM-ARM)
-
Customizable to any Length
- INST-1 Stainless Steel Bolt-Down Kit ( Installation Example )
Product Dimensions
Seat End SLWB-11E
Seat Depth : 16.5 inches/419 mm
Base Depth : 9 inches/229 mm
Height Including Lumber : 11 inches/279 mm
Weight : 2 lbs/.9 kg
Seat Support SLWB-11S
Seat Depth : 16.5 inches/419 mm
Base Depth : 16.5 inches/419 mm
Height Including Lumber : 11 inches/279 mm
Weight : 2 lbs/.9 kg
Re-plast Lumber
Thickness : 1 7/16 inches/38 mm
Depth : 5 3/8 inches/138 mm
Weight : 3.2 lbs/ft 4.6 kg/meter
Recycled Content
- Recycled Content By Weight (5 ft bench): 86%
- 100% Recyclable
